HaaP Detector Series

Superior Image Quality & Durable Robustness

  • High DQE: Excellent imaging quality even at lower doses.
  • Durable and Robust: Able to handle up to 400kg of distributed load (A Series).
  • Safe Transition: Easy and cost-effective conversion from CR to DR.
  • Lightweight Design: F Series features unprecedented weight of only 2kg.
  • Ergonomics Friendly: Side chamfer and rear grip for easy lifting and transport.
  • Versatile Use: Suitable for Radiography, Dental, Industrial, and Vet applications.

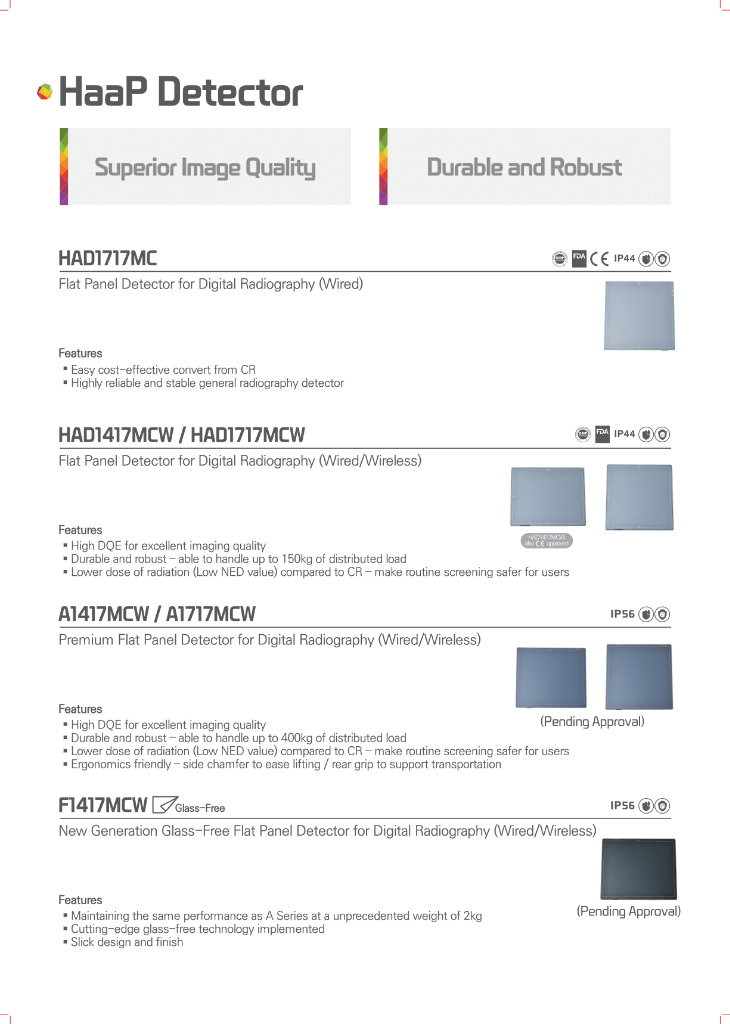

Flat Panel Detector Overview

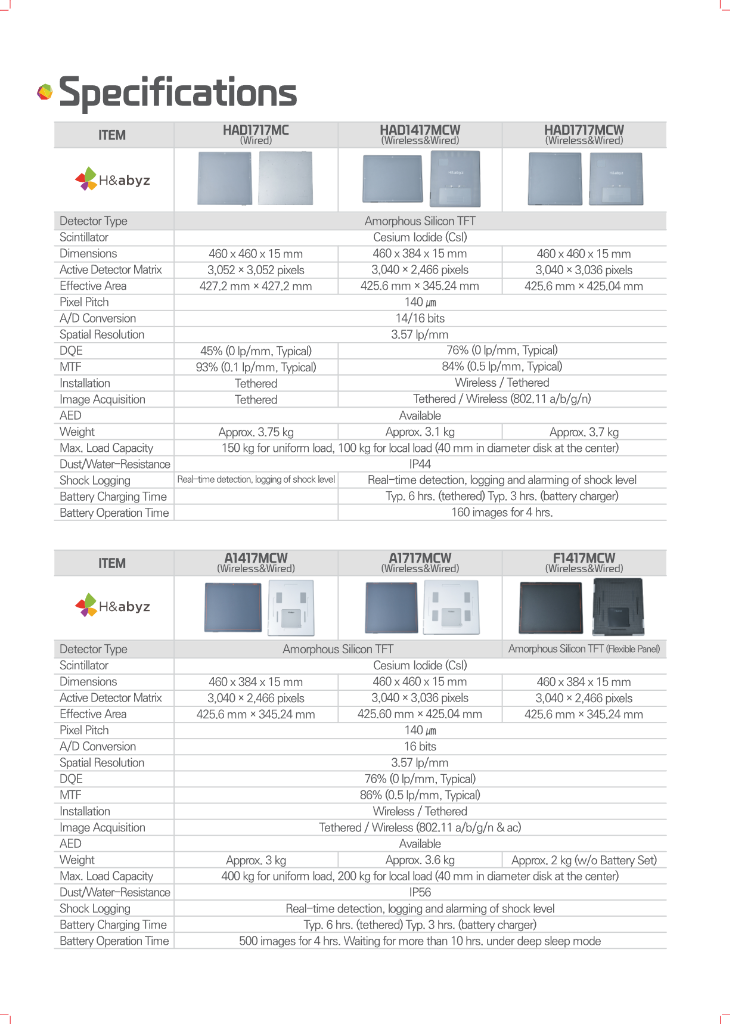

Technical Specifications

SPECIFICATION
Detector Specifications
Model HAD1717MC A1717MCW
Detector Type Amorphous Silicon TFT
Scintillator Cesium Iodide (CsI)
Dimensions 460 x 460 x 15 mm 460 x 460 x 15 mm
Effective Area 427.2 x 427.2 mm 425.6 x 425.04 mm
Pixel Pitch 140 μm
DQE 45% (0 lp/mm, Typical) 76% (0 lp/mm, Typical)
Max. Load Capacity 150 kg (Uniform) 400 kg (Uniform)

* For detailed wireless and flexible model specifications, please contact us.

Characteristics & Applications

Advanced Panel Technology

Our HaaP (H&abyz advanced Panel) CsI technology uses direct deposition for high light output and reliable performance. Specialised sealing technology ensures high reliability even in demanding environments.

  • Readily Customizable: Deposit CsI in all sizes from 3x3 to 67x67.
  • High Performance: Secured with advanced sealing technology.
  • Flexible Options: Glass-free detectors for unprecedented portability.

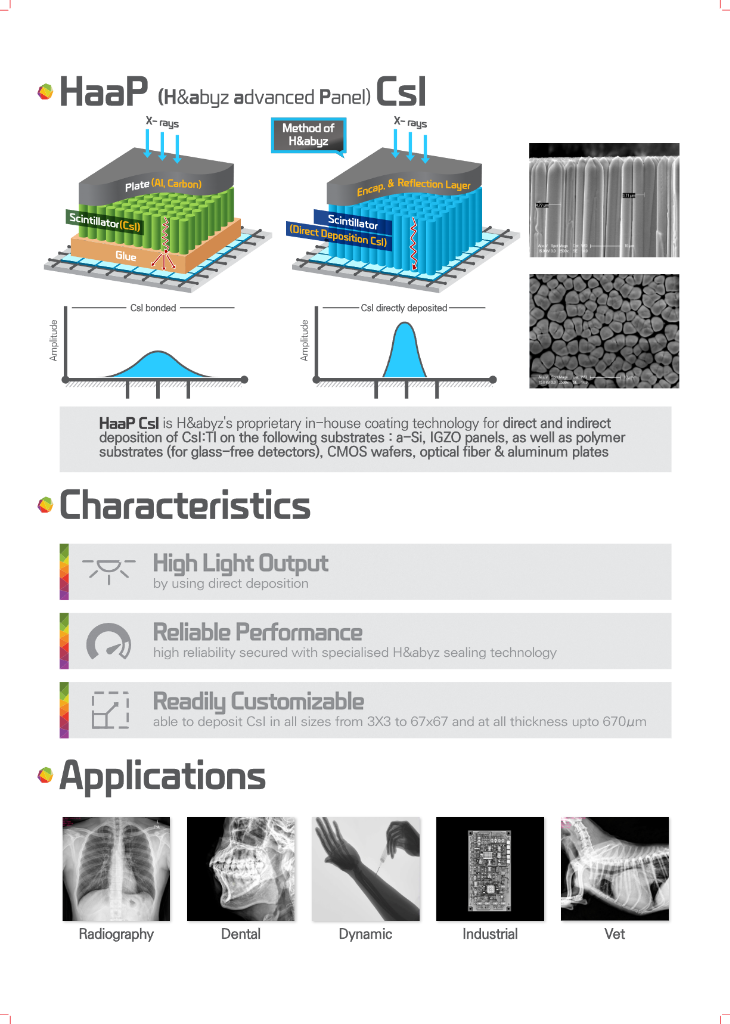

Detector Characteristics
