Foldable Stand for Portable X-ray unit

Compact design & Easy maneuverability

  • Proprietary Fully Foldable: Original design for maximum storage efficiency.
  • Engineered for Transport: Minimal storage footprint, perfect for mobile clinics.
  • Remote Motorized Lift: Remote-operated motorized lift adjustment for user convenience.
  • Lockable Casters: Easy movement and stable positioning with high-quality casters.
  • Sturdy & Safe: Maximum weight capacity of 70kg for reliable support.

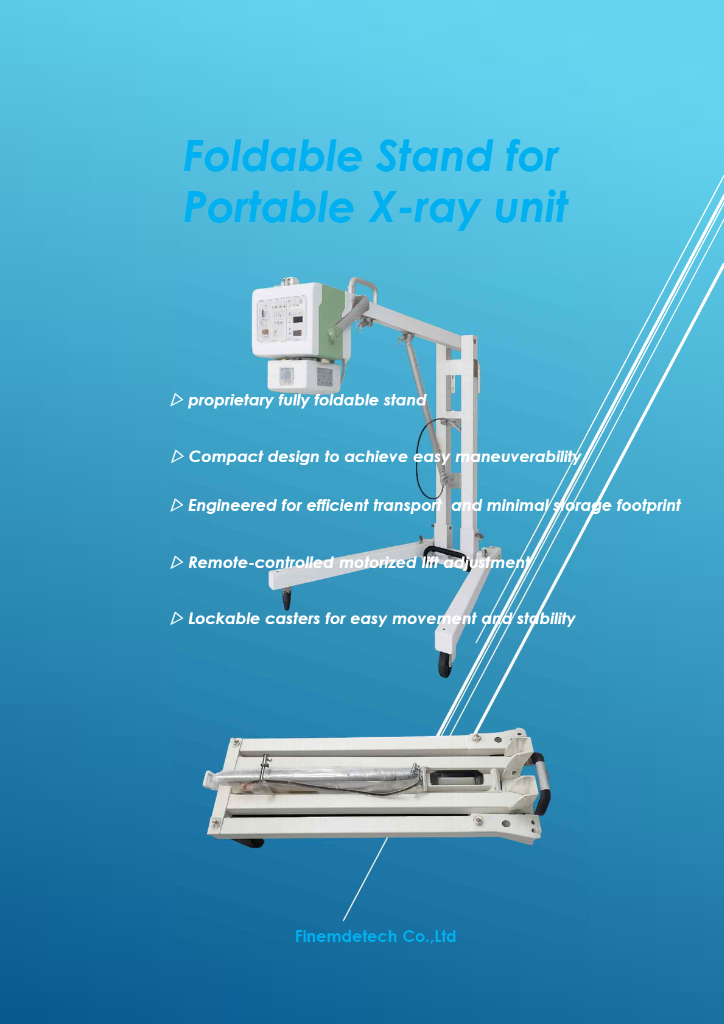

Folding Stand Overview

Smart Lifting System

Features a remote-operated linear actuator system for easy lifting, designed to minimize user effort while maintaining maximum safety and stability.

Effortless Loading

The compact and foldable design allows for easy loading into standard car trunks, making it an ideal choice for mobile diagnostic services.

* The specifications of this product are subject to change without prior notice.

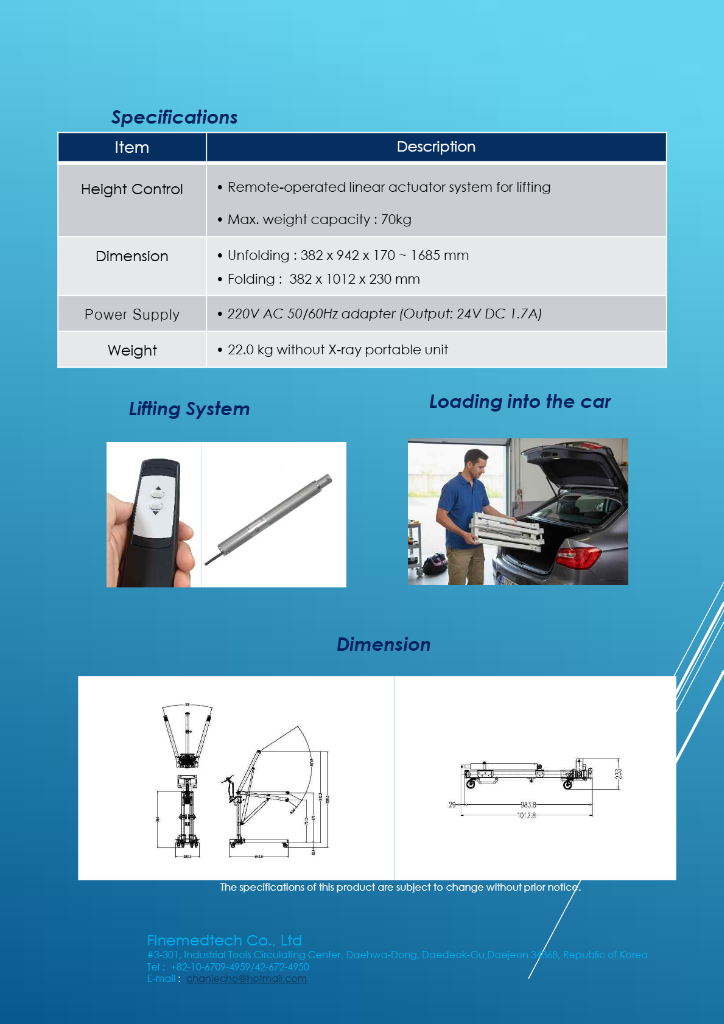

Technical Specifications

Folding Stand Specifications
Height Control Remote-operated linear actuator system / Max. 70kg
Dimension (Unfolding) 382 x 942 x 170 ~ 1685 mm
Dimension (Folding) 382 x 1012 x 230 mm
Power Supply 220V AC 50/60Hz adapter (Output: 24V DC 1.7A)
Weight 22.0 kg without X-ray portable unit
