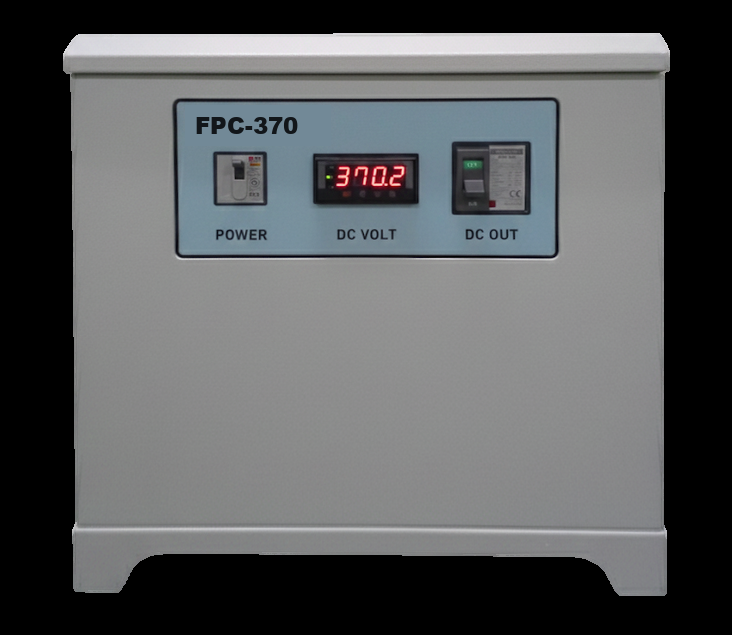

FPC-370 / FPC-600

Capacitor Type Power Storage Unit

Most clinics and many hospital rooms only have single-phase 220V power. A modern high-frequency X-ray generator, however, demands tens of kilowatts of peak power for a fraction of a second during exposure. Upgrading the building to three-phase power is expensive, slow, and often impossible in rented or older facilities.

FPC-370 / FPC-600 solves this gap. It slowly charges from a modest 1 kW single-phase supply, stores the energy in a high-capacity capacitor bank, and then delivers up to 40 kW / 50 kW instantaneous DC power exactly when the X-ray generator needs it.

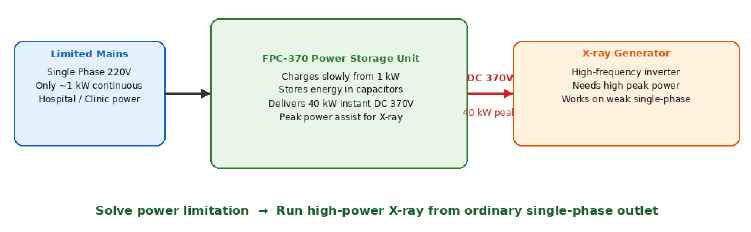

System Concept & Operation

Solve power limitations and run high-power X-ray from an ordinary single-phase outlet

Key Benefits

High Peak-Power Output: Enables high peak-power X-ray operation on a limited single-phase 220V supply.
Rated Generator Performance: Helps the generator achieve its rated output rather than being forced to operate at reduced power.
Standard DC Output: Standard DC 370V / 600V output matches typical HF generator inverter / DC bus input.
Capacitor Storage Technology: Fast charge/discharge, low maintenance, and long cycle life.

Ideal For

Power-Limited Sites: Sites where single-phase supply limits generator peak performance.
Mobile Screening Vehicles: Perfect for mobile health and screening vans with standard power hookups.
Rural & Temporary Clinics: Rural health centers and temporary screening sites.
Infrastructure Savings: Facilities that want to avoid or delay costly electrical infrastructure upgrades.

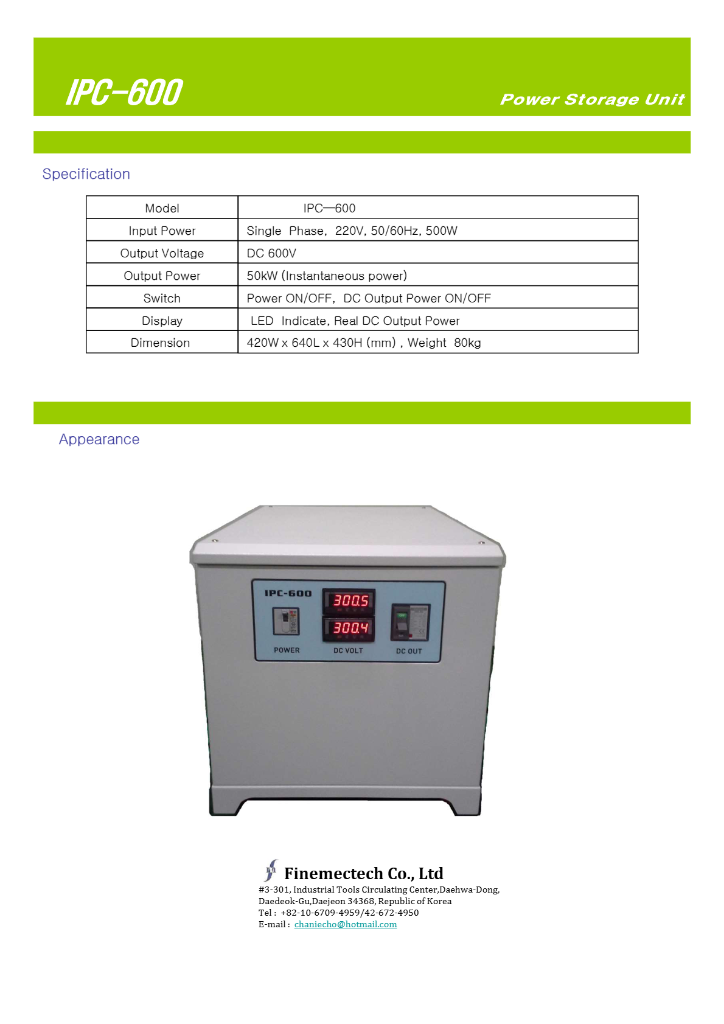

Technical Specifications

Detailed specifications for FPC-370 and FPC-600 models

Item	FPC-370	FPC-600
Input Power	Single Phase 220VAC, 50/60Hz, 1 kW
Output Voltage	DC 370V	DC 600V
Output Power (Momentary Power)	40 kW	50 kW
Switch	Power On/Off, DC Output Power On/Off
Display	LED Display, Real DC Output Power
Dimensions (W x L x H)	W420 x L640 x H385 (mm)	W420 x L640 x H430 (mm)
Weight	66 kg	80 kg
Application	Peak-power assist for HF X-ray generator

Front Panel Control & Display

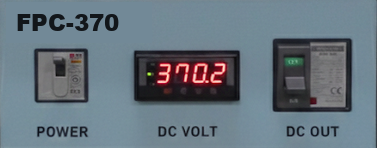

FPC-370 Display Panel

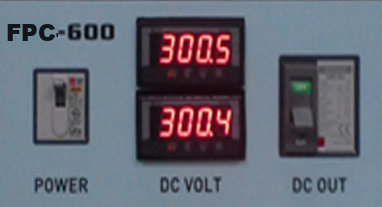

FPC-600 Display Panel

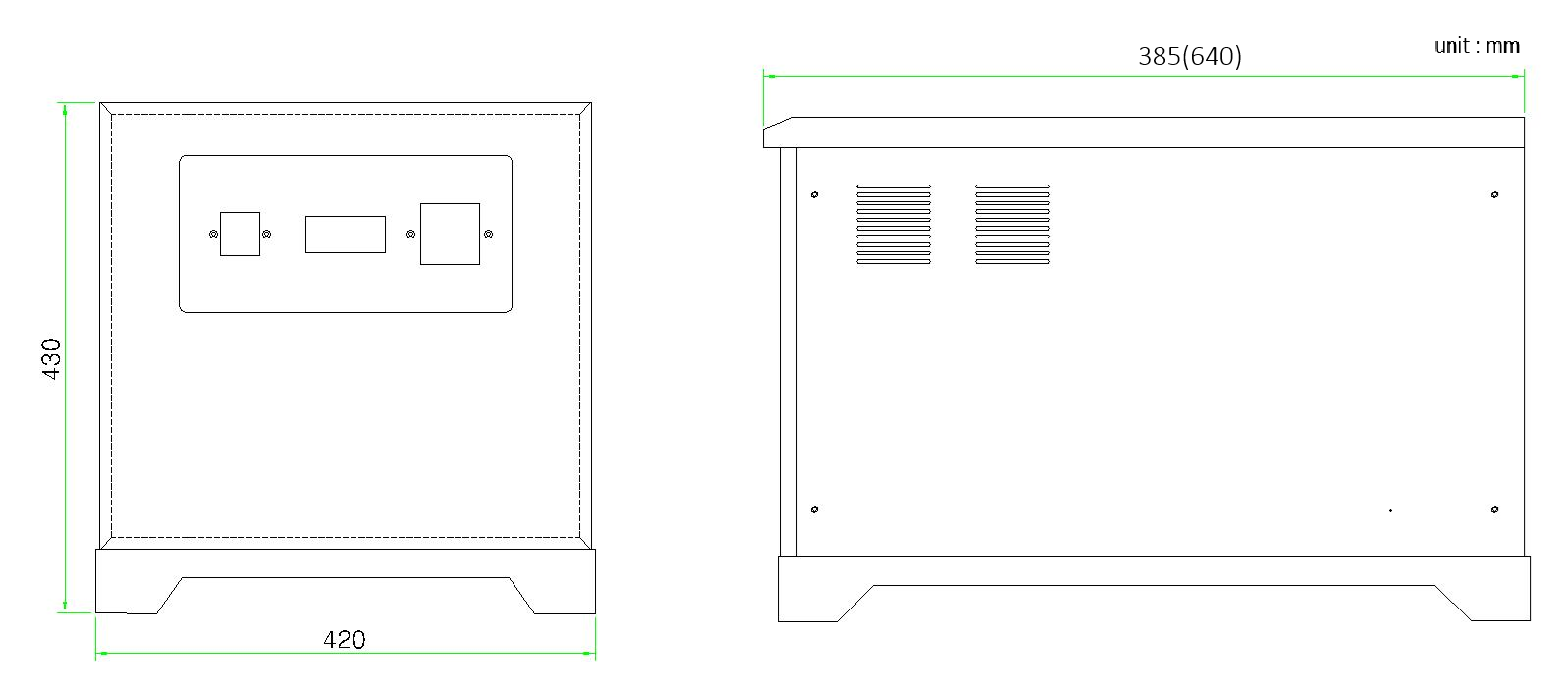

Dimensions & Structural Design

Compact form factor designed for effortless integration into medical suites
