Advanced Mobile Radiography

Economical & Competitive Solution

  • Sturdy and reliable Design: Built for durability in demanding medical environments.
  • Compact Size: Perfect for mid-size clinics and tight spaces.
  • Cost-Effective: A reasonable price for your budget without compromising quality.
  • Versatile: Best solution for ICU and operation rooms.
  • Superior Imaging: High-quality structure for precise clinical study.
  • Easy Charging: Simply rechargeable by any wall outlet at anytime.

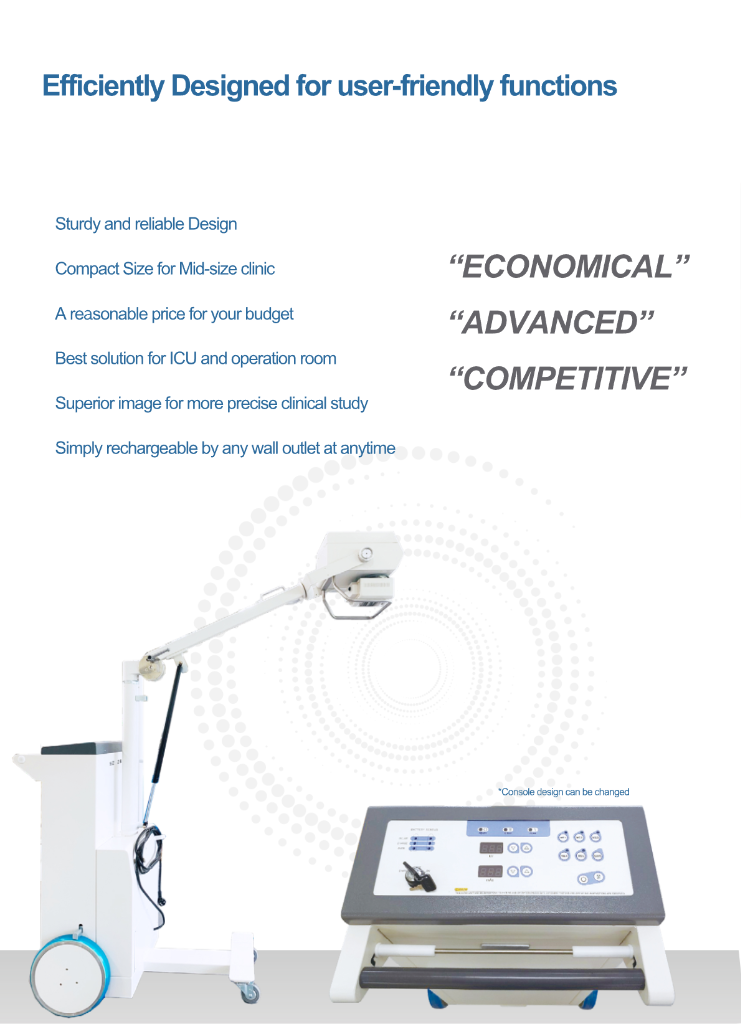

Mobile X-ray Unit Features

Specifications

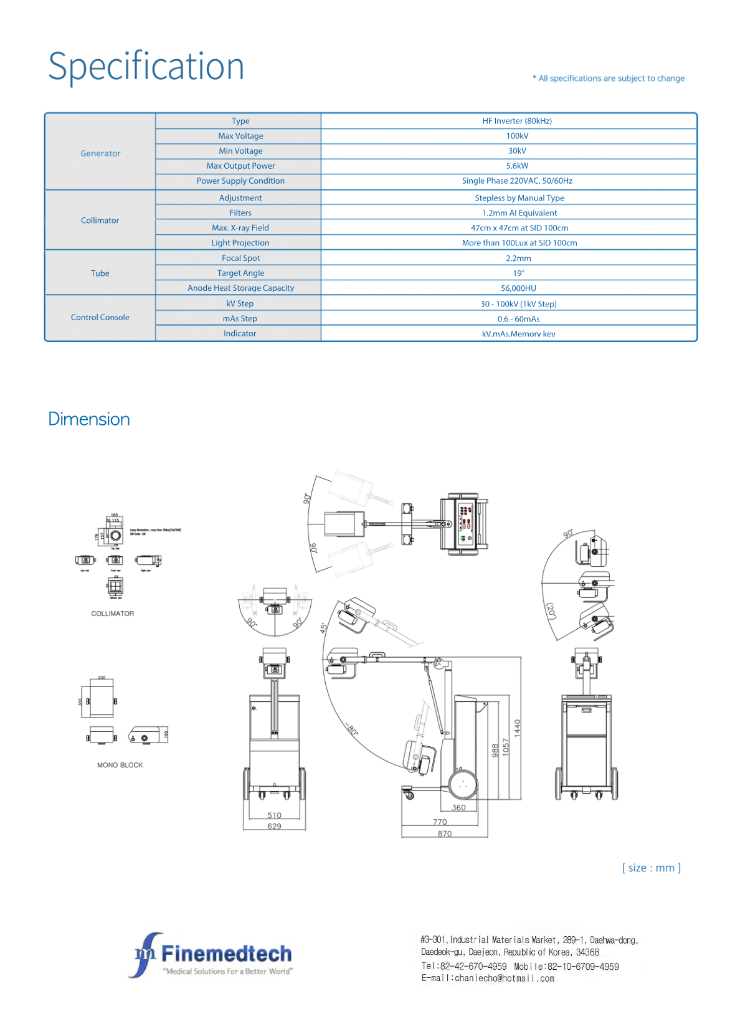

Mobile Unit Dimensions
Generator (HF Inverter 80kHz)
Max Voltage 100kV
Min Voltage 30kV
Max Output Power 5.6kW
Power Supply Condition Single Phase 220VAC, 50/60Hz
Collimator
Adjustment Stepless by Manual Type
Max. X-ray Field 47cm x 47cm at SID 100cm
Light Projection More than 100Lux at SID 100cm
Tube & Console
Focal Spot 2.2mm
Target Angle 19°
kV Step 30 - 100kV (1kV Step)
mAs Step 0.6 - 60mAs
