X-ray Radiography System

High-performance diagnostic imaging solutions

High Frequency & DIAGNOSTIC Radiography

X-ray System for the sake of health and a better life

Experience the precision of our high-frequency diagnostic radiography system. Designed for optimal image quality and patient safety, our complete solution integrates advanced components for seamless operation.

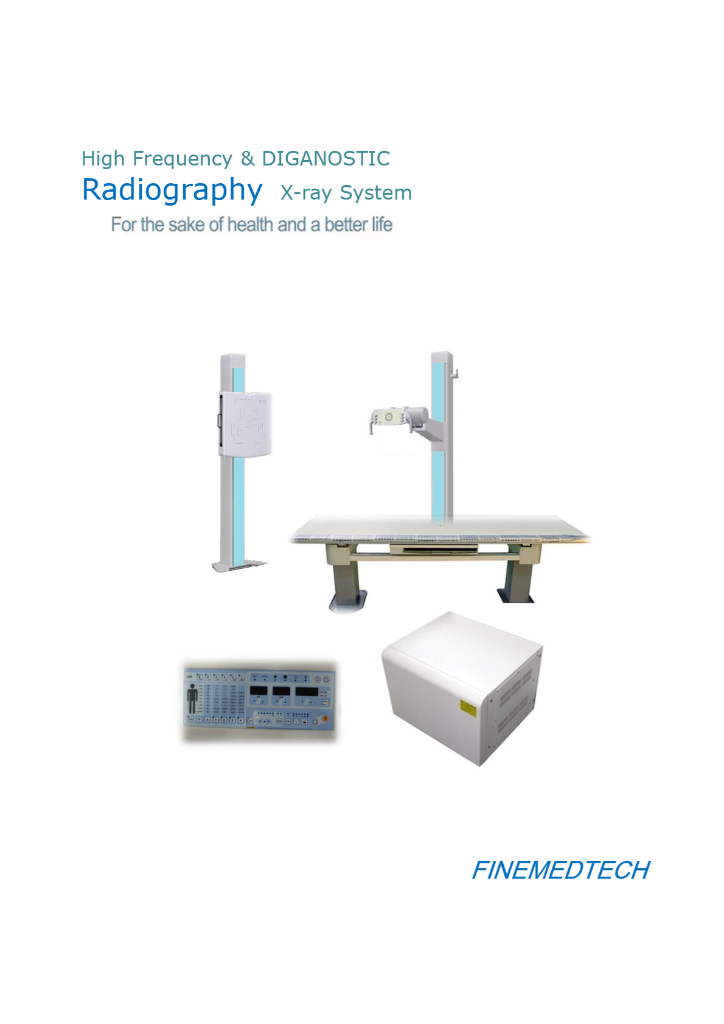

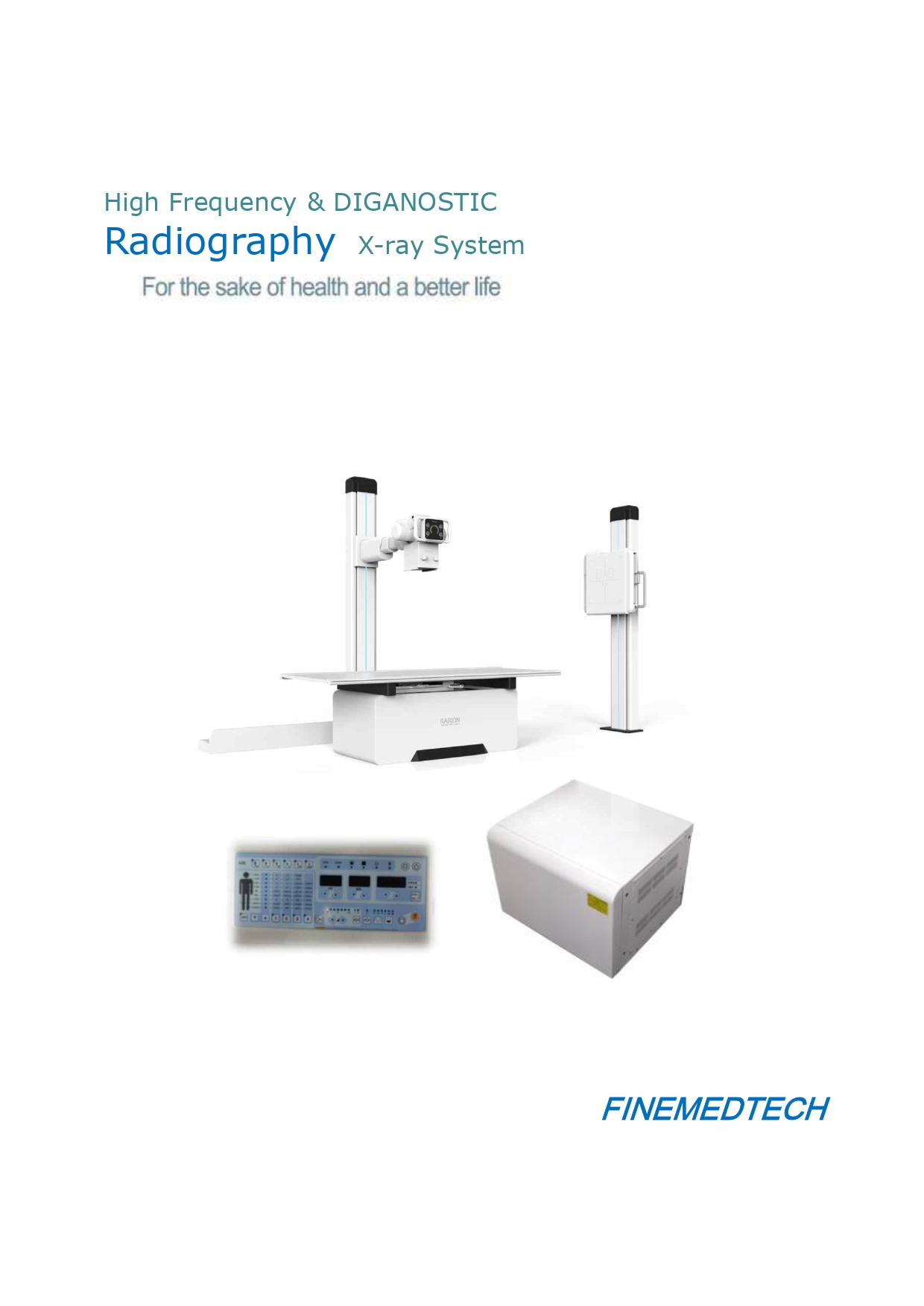

X-ray System Overview

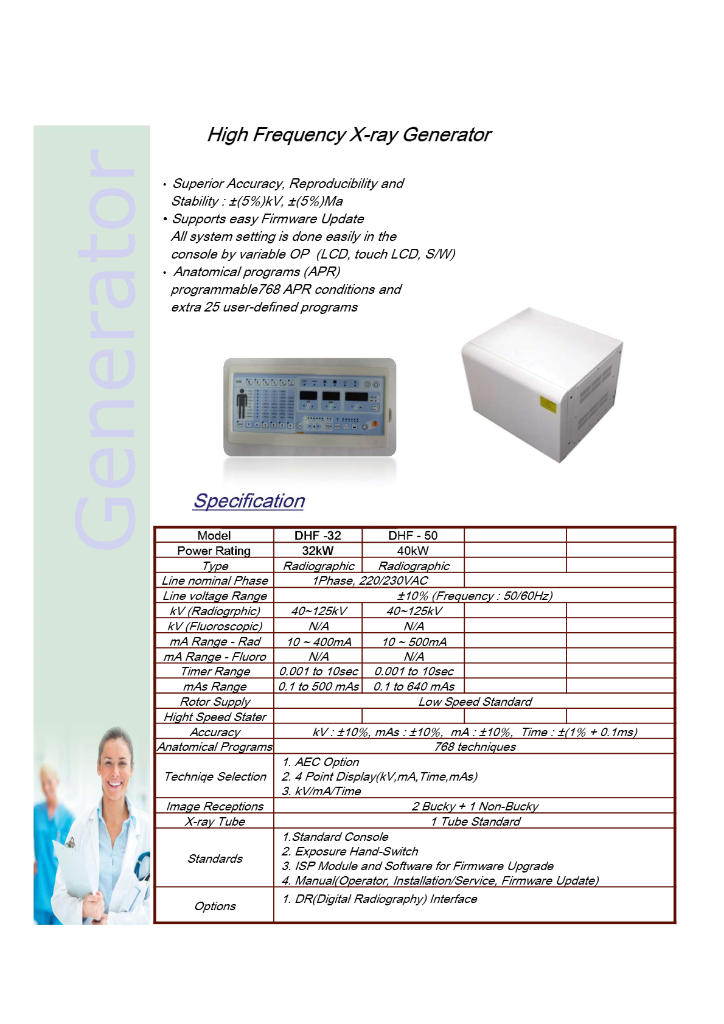

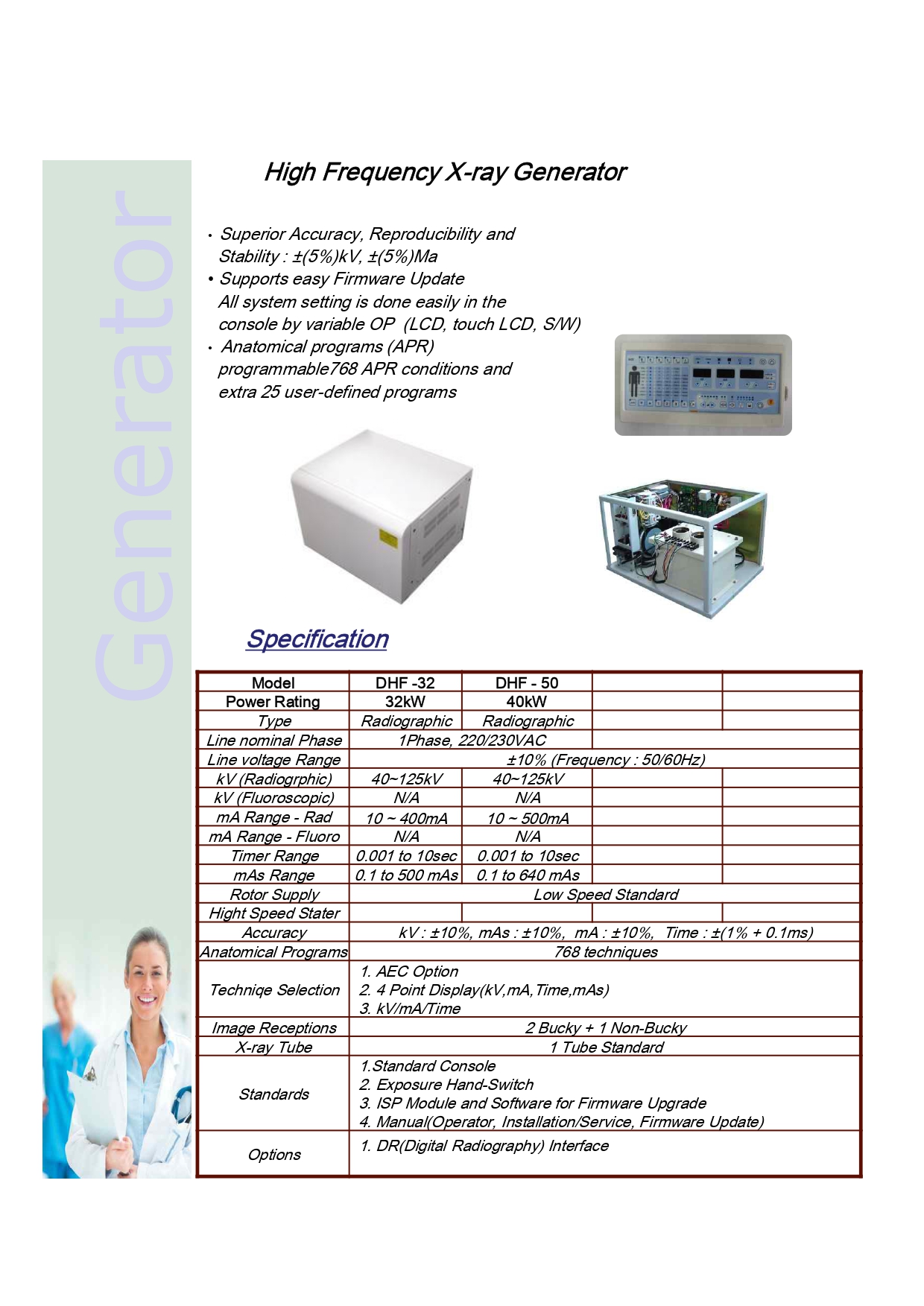

High Frequency X-ray Generator

X-ray Generator
  • Superior Accuracy, Reproducibility and Stability: ±(5%)kV, ±(5%)Ma
  • Supports easy Firmware Update
  • All system setting is done easily in the console by variable OP (LCD, touch LCD, S/W)
  • Anatomical programs (APR): programmable 768 APR conditions and extra 25 user-defined programs
Model DHF -32 DHF - 50
Power Rating 32kW 40kW
Type Radiographic
Line nominal Phase 1Phase, 220/230VAC
kV (Radiographic) 40~125kV 40~125kV
mA Range - Rad 10 ~ 400mA 10 ~ 500mA
Timer Range 0.001 to 10sec 0.001 to 10sec

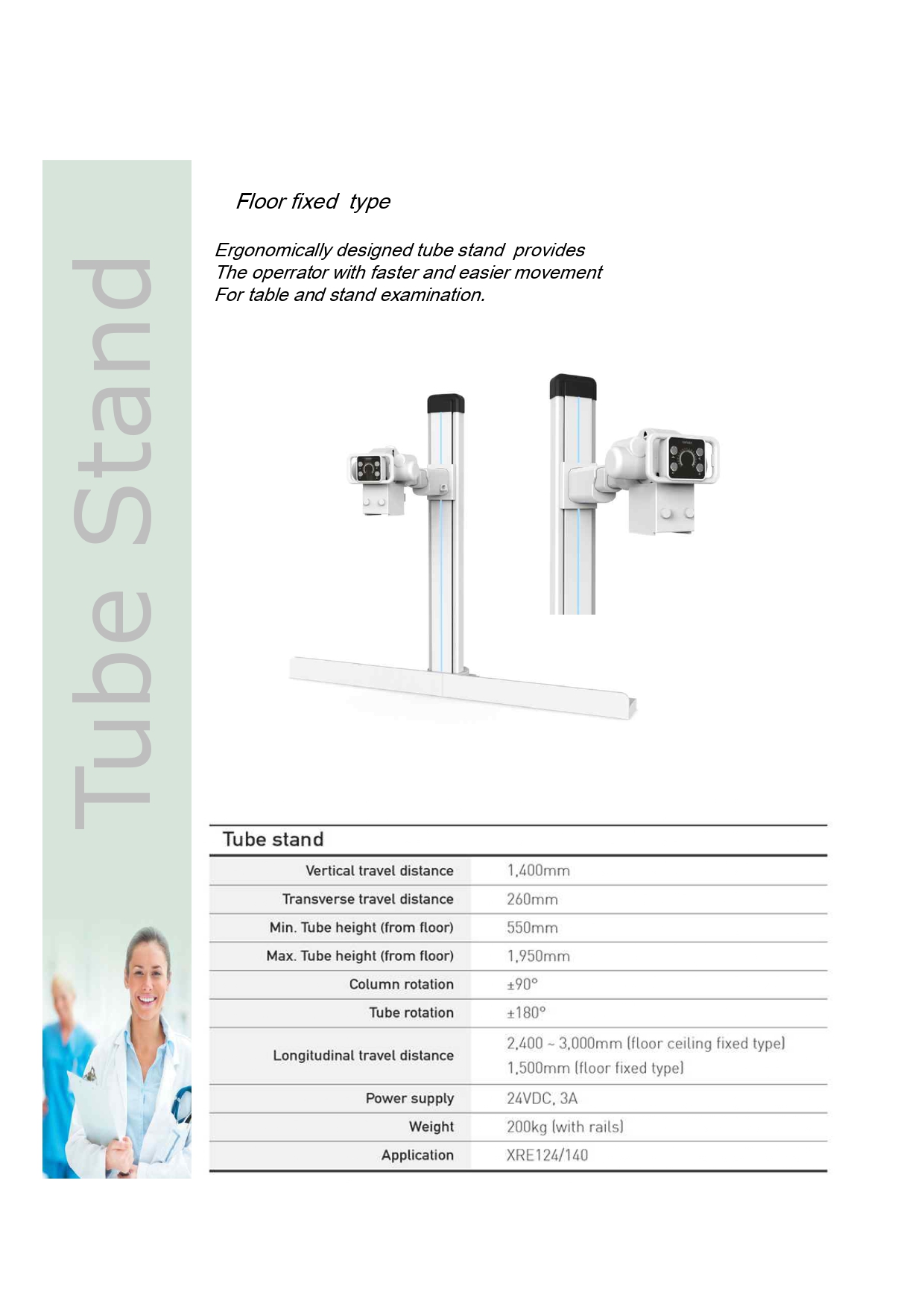

Tube Stand

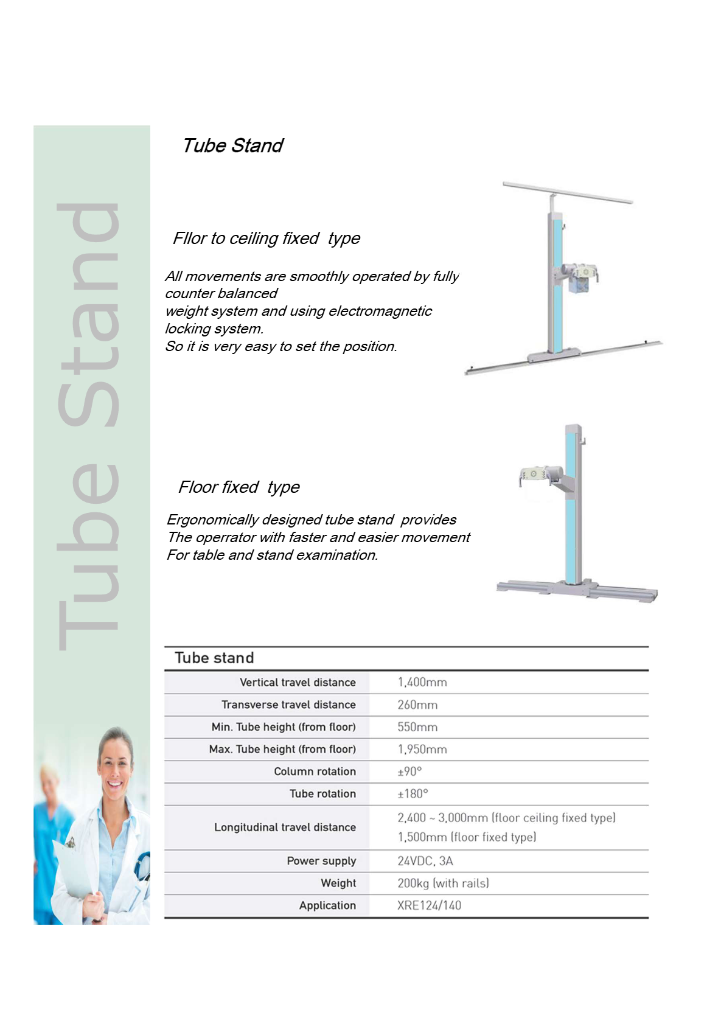

Tube Stand

Floor to Ceiling Fixed Type

All movements are smoothly operated by fully counter-balanced weight system and using electromagnetic locking system. So it is very easy to set the position.

Floor Fixed Type

Ergonomically designed tube stand provides the operator with faster and easier movement for table and stand examination.

Vertical travel distance 1,400mm
Transverse travel distance 260mm
Column rotation ±90°
Tube rotation ±180°

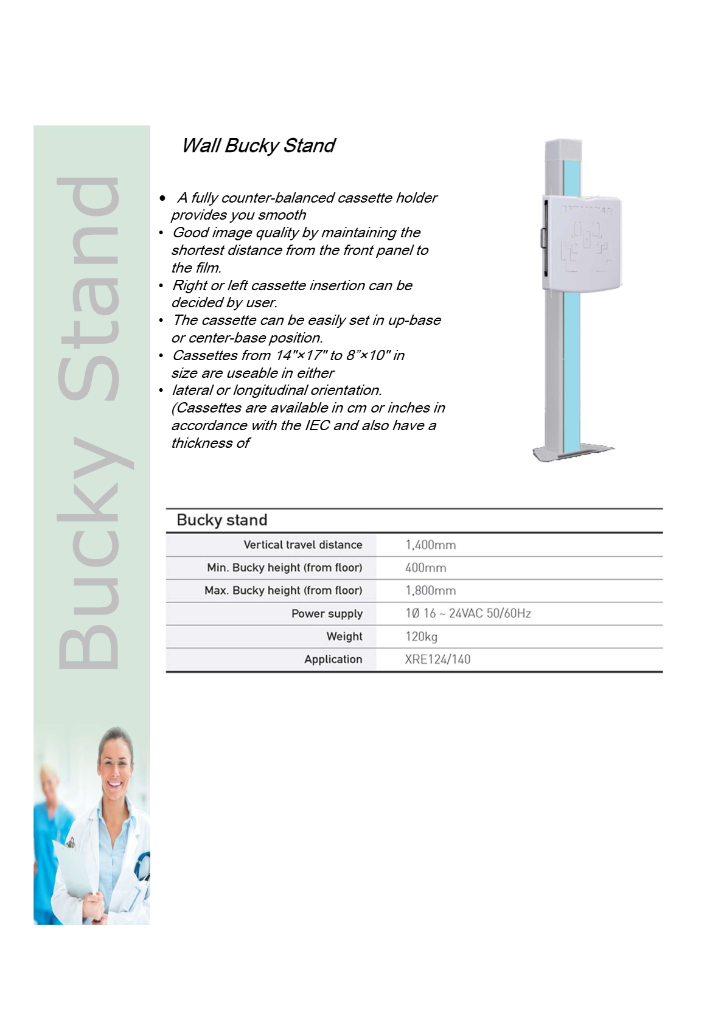

Wall Bucky Stand

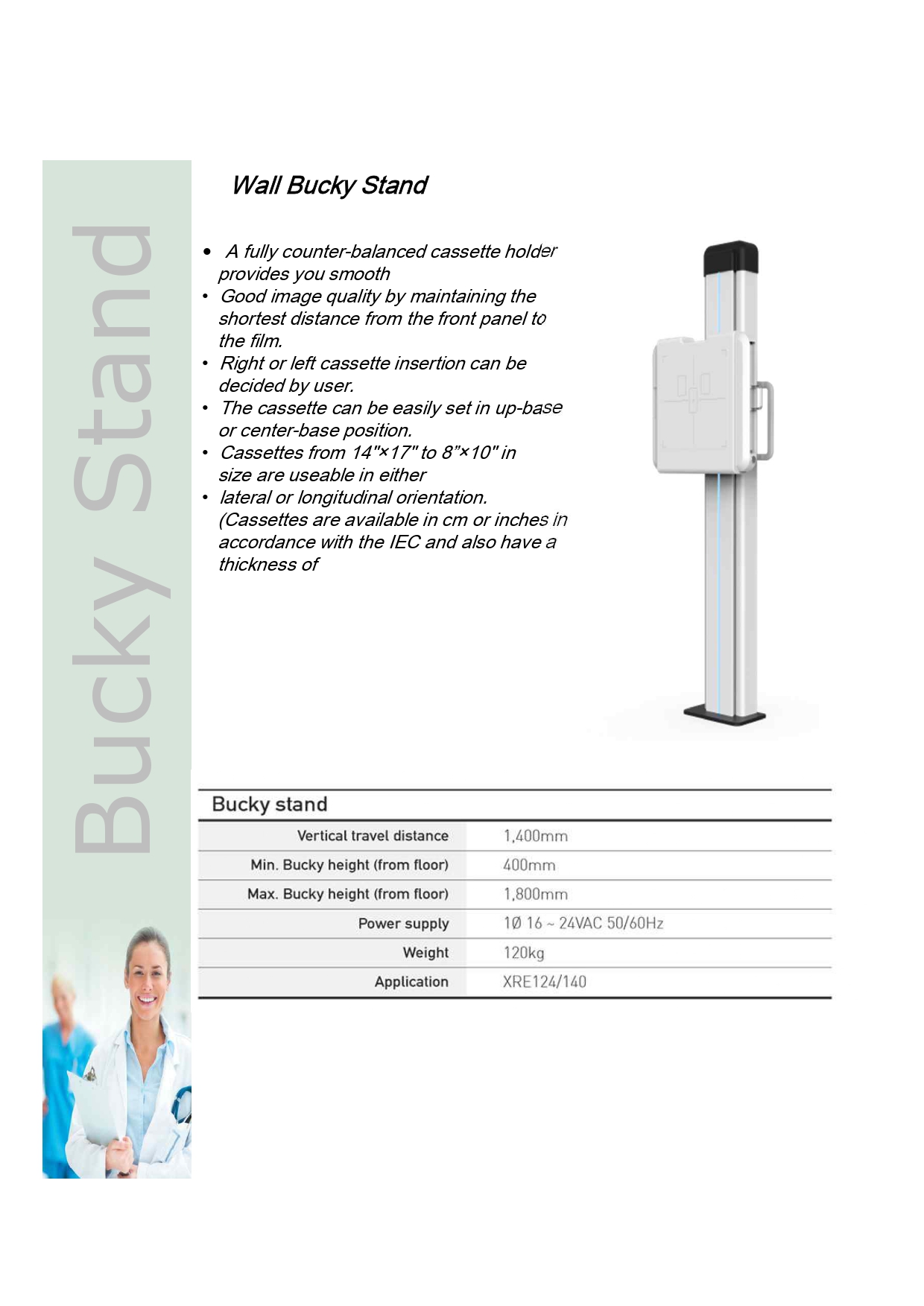

Wall Bucky Stand
  • A fully counter-balanced cassette holder provides you smooth movement.
  • Good image quality by maintaining the shortest distance from the front panel to the film.
  • Right or left cassette insertion can be decided by user.
  • Cassettes from 14"x17" to 8"x10" in size are useable in either lateral or longitudinal orientation.
Vertical travel distance 1,400mm
Min. Bucky height (from floor) 400mm
Max. Bucky height (from floor) 1,800mm

Floating Table (4-Way & 6-Way)

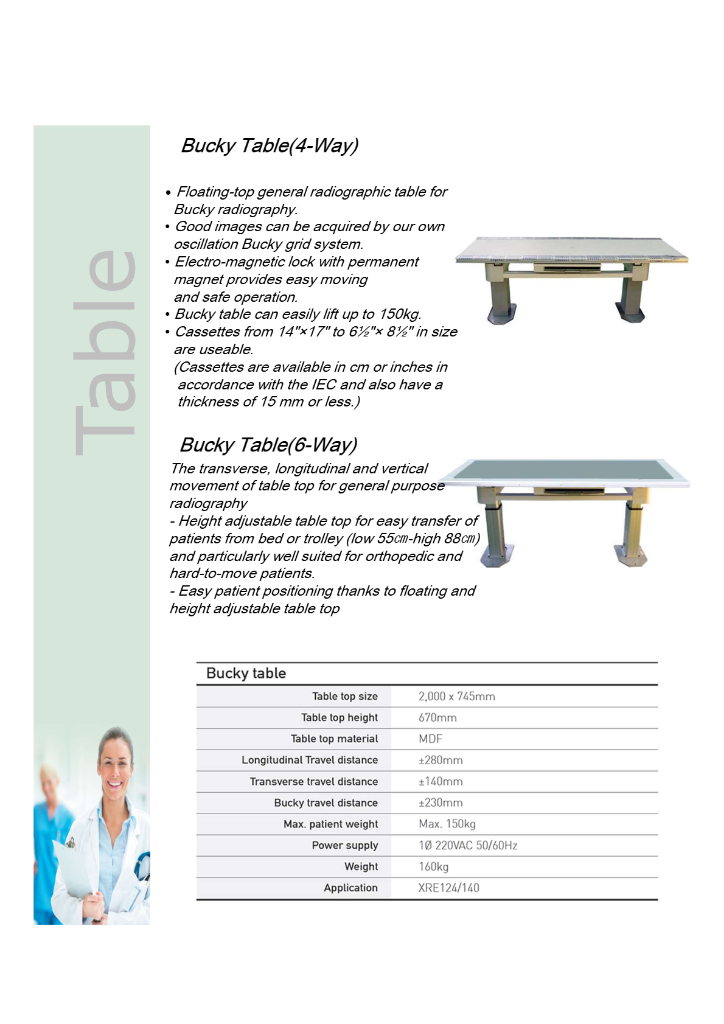

Bucky Table

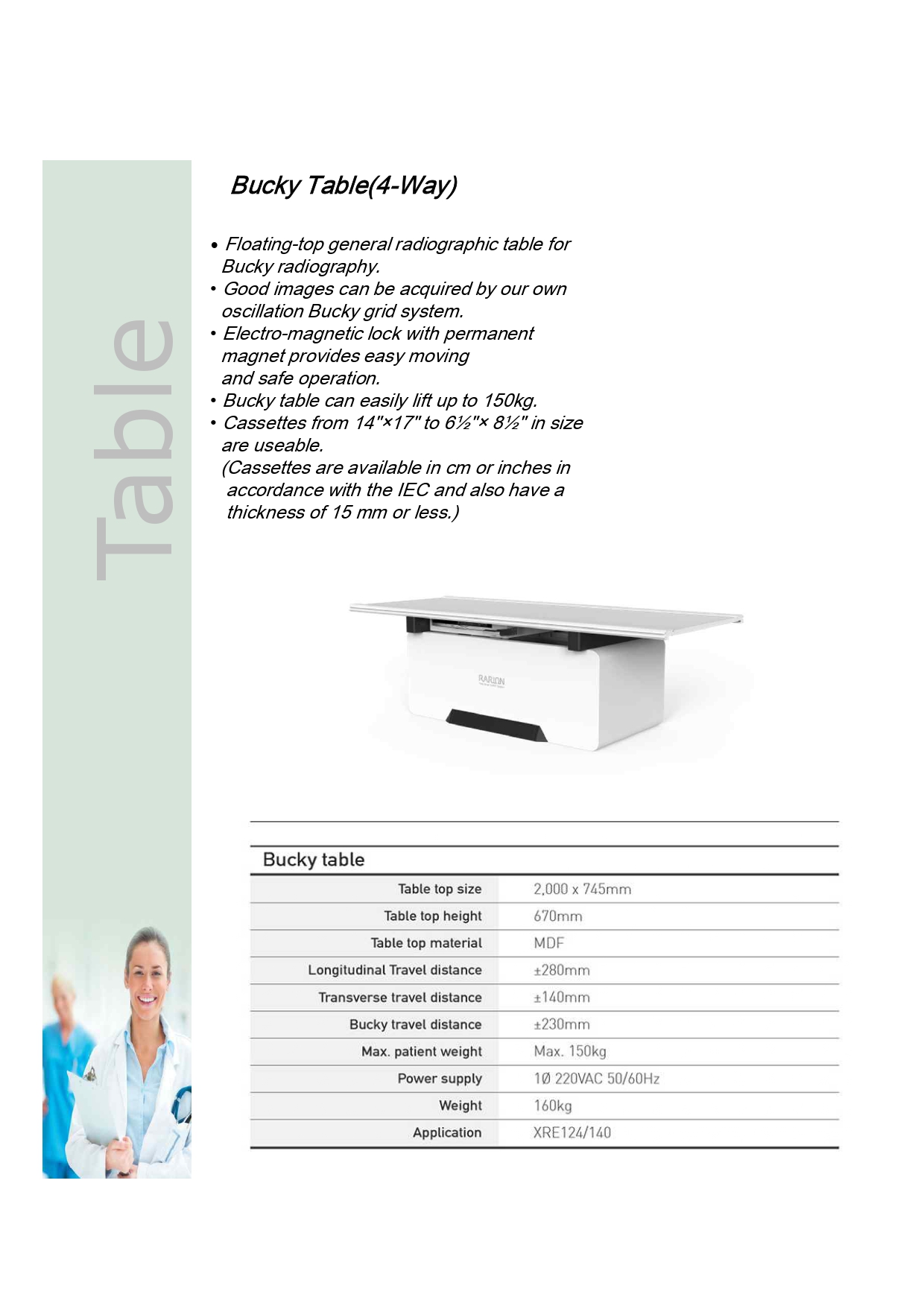

Bucky Table (4-Way)

  • Floating-top general radiographic table for Bucky radiography.
  • Electro-magnetic lock with permanent magnet provides easy moving and safe operation.
  • Bucky table can easily lift up to 150kg.

Bucky Table (6-Way)

  • The transverse, longitudinal and vertical movement of table top for general purpose radiography.
  • Height adjustable table top for easy transfer of patients (low 55cm - high 88cm).
  • Easy patient positioning thanks to floating and height adjustable table top.
Table top size 2,000 x 745mm
Table top height 670mm (4-way) / 550-880mm (6-way)
Max. patient weight Max. 150kg
